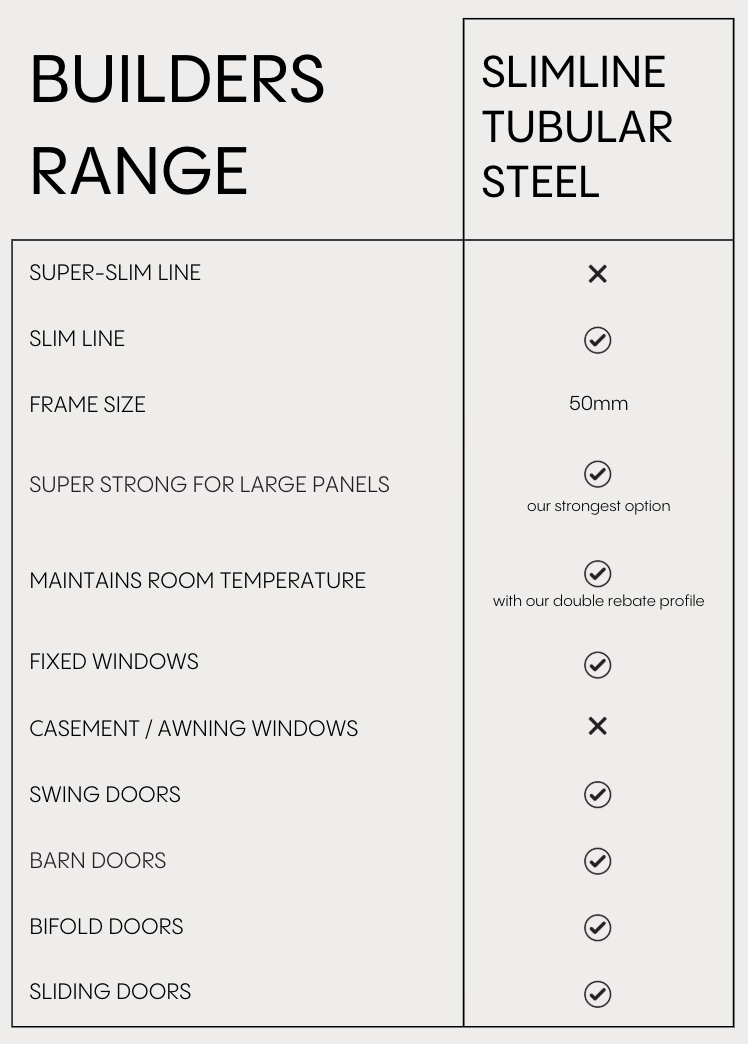

BUILDERS RANGE

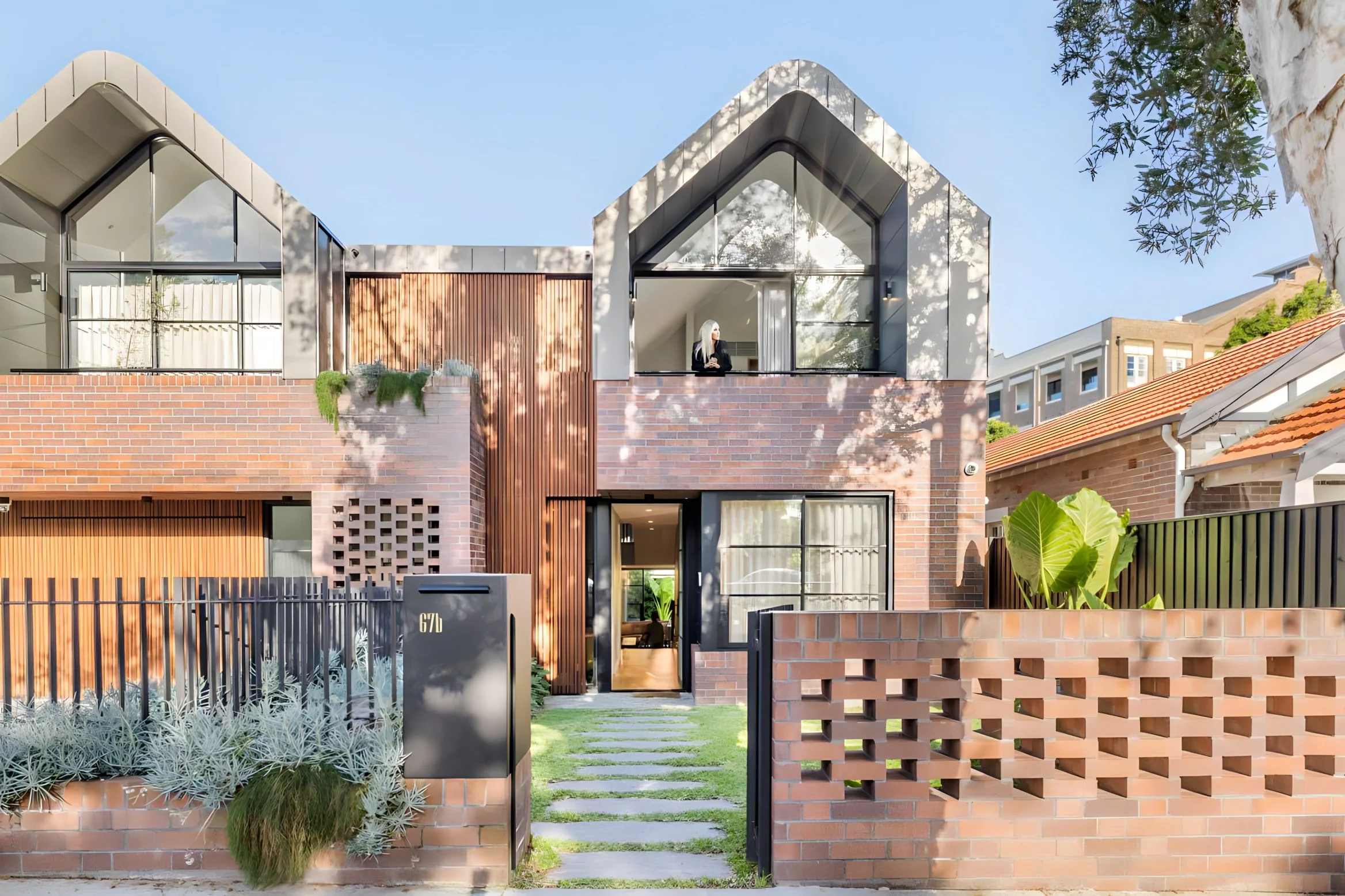

Featured across some of Sydney’s most prized residences

We give architects, builders and interior designers like you access to the best premium quality custom slimline steel windows & doors.

Slimline Tubular Steel offers a cost-effective solution with a sleek, slim design that delivers durability and strength for both indoor and outdoor applications.

  • Precision cold formed steel profiles.

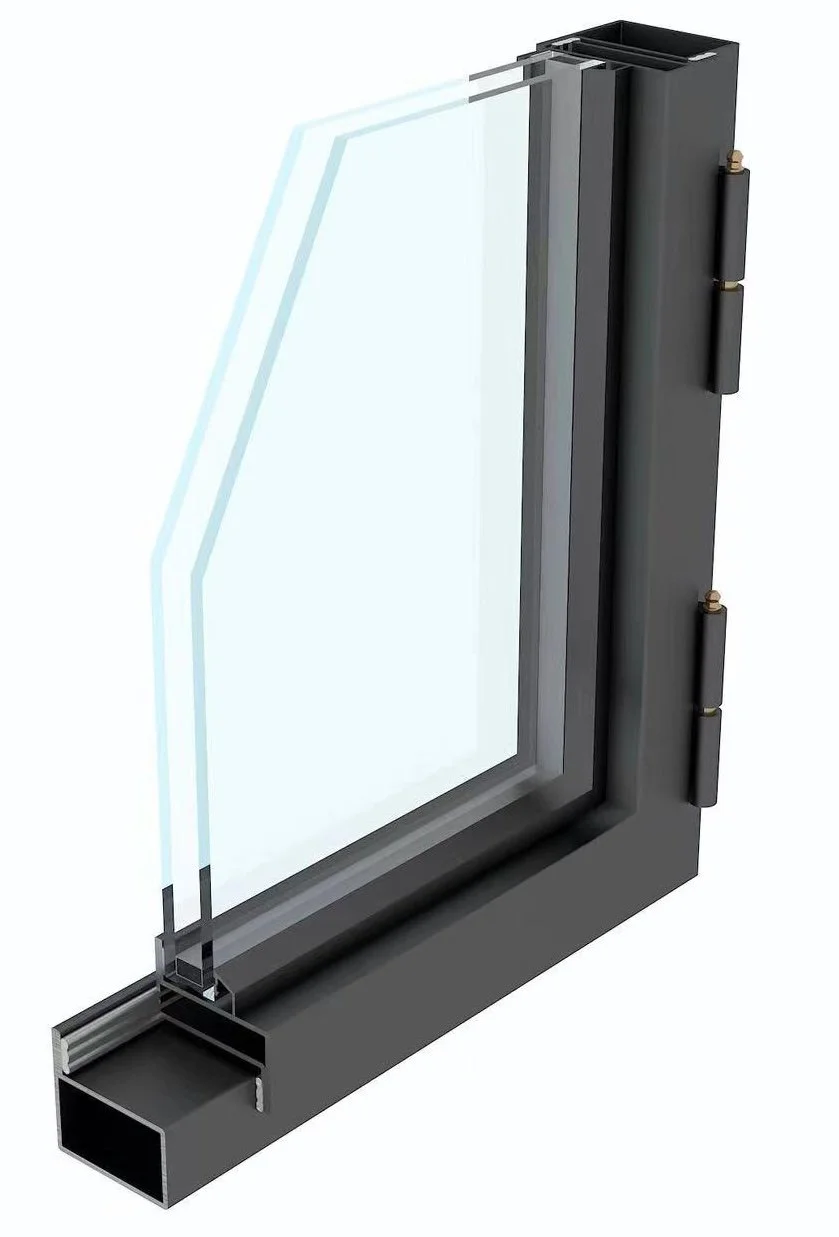

  • ”P” profile design. 2mm wall thickness tube with foam injected.

  • Very compact profiles with minimal depth and sightlines

  • Low emissivity double-glazing up to 37 mm

  • Choice of different glazing beads

  • Zinc-magnesium pre-coating for corrosion protection

  • Surface finishes in any RAL colours

TECHNICAL

  • Slimline Cold-Formed Pre-Galvanised Tubular Steel

    • Zinc-magnesium pre-coating for corrosion protection

    • Gritblasting SA 2.5

    • First layer is a sealing primer

    • Second layer is a high-durability top coating

    • Total thickness is at least 150—180 microns according to VMRG quality requirements

    • All products are available in any of 216 colours in the classic RAL chart.

  • Glazing options:

    • Single glazing

    • Double glazing

    • Triple glazing

    • Low-E over Clear insulated glass

    • Pattern glass over Clear insulated glass

    • Low-E over Pattern insulated glass

    • PPG over Clear insulated glass

    • PPG over Pattern

    • Laminated glass over insulated glass

    Custom Glass Finish:

    • Frosted

    • Reed

    • Flute

    • Flemish

    • Retractable Option in Nylon material

    • Fixed Option in Steel material

  • Glazing is certified in accordance with the following Australian Standards:

    AS/NZS 2208:1996 safety glazing materials in buildings

    AS/NZS 4666:2012 insulating glass units
